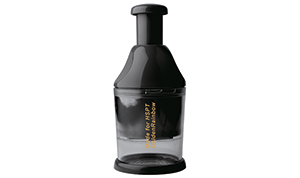

These tools will help you to get perfect results
( included in the box )
Product overview
| 1. Tubes Magazine | 6. LED display for power on |
| 2. Back carriage opening | 7. Pause/Continue cycle button |
| 3. Tobacco hopper | 8. Start/Stop cycle button |
| 4. Discharge chute | 9. Drawer for excess tobacco |
| 5. Compaction control | 10. Cigarette counter |
Important
Tobacco Length
The length of the tobacco MUST be between 6mm to 16mm
Moisture

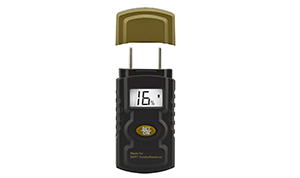

Tobacco moisture MUST be between 12% and 20%
Power Cord

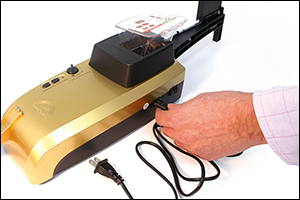

Insert the power cord into the machine and plug into a power outlet
Back Box Carriage

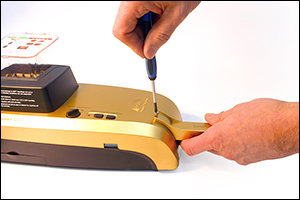

MPosition and fix the back box carriage to preset screw holes
Installation
What you need
Suitable tobacco

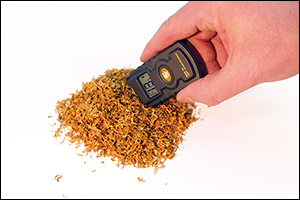

Tobacco size MUST be between 6mm to 16mm and moisture MUST be between 12% to 20% (ideally 14% or 15%).
Tube catcher

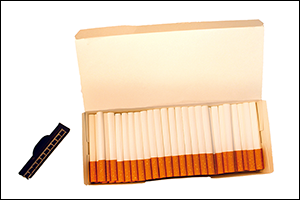

Use KING SIZE tubes only. REMOVE any damaged, missshaped or ‘oval’ tubes from the box.
Load tobacco and start
Open the the tobacco hopper cover and fill with approximately 15g of tobacco to make 10 cigarettes. Start a cycle
Load tube magazine

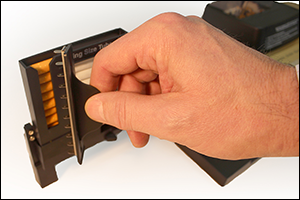

Turn power on. Gently slide down the tubes in the tube opening until all tubes are loaded.
HOW TO OPERATE
HOW TO CLEAN

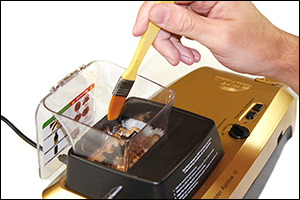

Brush and run cycle

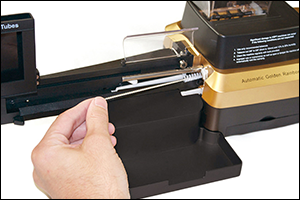

With the cleaning brushes provided, clean the tobacco wheel feeder inside the hopper. With the cleaning brushes provided, clean the tobacco wheel feeder inside the hopper.
Empty hopper
Remove the drawer for excess tobacco
